Cluster Manager

Cluster Manager

The Cluster Manager allows you to add, configure, and manage multiple Kubernetes clusters.

Overview

SRExpert supports managing multiple clusters from a single interface. You can:

  • Add clusters using kubeconfig
  • Monitor cluster health
  • Switch between clusters
  • Configure cluster-specific settings

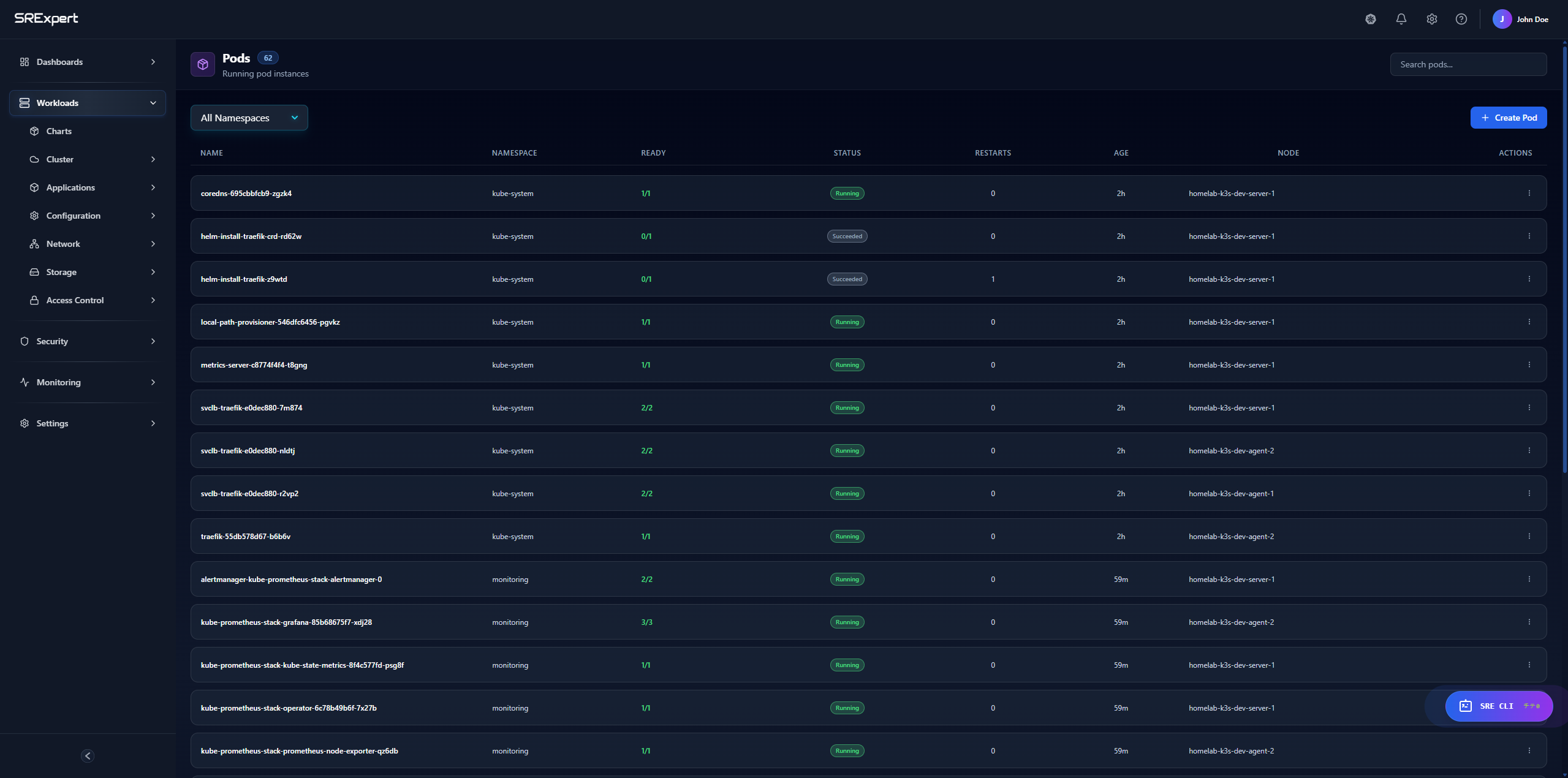

Cluster Manager
Switch between multiple Kubernetes clusters from the sidebar

Adding a Cluster

Prerequisites

  • A running Kubernetes cluster
  • A valid kubeconfig file
  • Network access from SRExpert to the cluster API

Step by Step

  1. Go to Settings > Clusters
  2. Click Add Cluster
  3. Fill in the cluster details:
FieldDescription
NameA friendly name for the cluster
DescriptionOptional description
EnvironmentProduction, Staging, or Development
ProviderAWS, Azure, GCP, On-Premise, etc.
  1. Upload or paste your kubeconfig
  2. Click Test Connection
  3. If successful, click Save

Kubeconfig Format

apiVersion: v1
kind: Config
clusters:
- cluster:
    certificate-authority-data: <base64-encoded-ca>
    server: https://your-cluster-api:6443
  name: my-cluster
contexts:
- context:
    cluster: my-cluster
    user: my-user
  name: my-context
current-context: my-context
users:
- name: my-user
  user:
    client-certificate-data: <base64-encoded-cert>
    client-key-data: <base64-encoded-key>

Cluster Status

After adding a cluster, you’ll see its status:

StatusDescription
ConnectedCluster is accessible
DisconnectedCannot reach cluster API
ErrorAuthentication or other error
SyncingInitial data sync in progress

Managing Clusters

Edit Cluster

  1. Go to Settings > Clusters
  2. Click on the cluster
  3. Modify settings
  4. Click Save

Remove Cluster

  1. Go to Settings > Clusters
  2. Click on the cluster
  3. Click Delete
  4. Confirm deletion

Warning: Removing a cluster doesn’t affect the actual cluster, only SRExpert’s connection to it.

Switch Clusters

Use the cluster selector in the top navigation bar to switch between clusters.

Cluster Permissions

Minimum Required Permissions

For read-only access:

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: srexpert-readonly
rules:
- apiGroups: ["*"]
  resources: ["*"]
  verbs: ["get", "list", "watch"]

Full Access

For full functionality (including SRE CLI):

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: srexpert-admin
rules:
- apiGroups: ["*"]
  resources: ["*"]
  verbs: ["*"]

Creating a ServiceAccount

# Create namespace
kubectl create namespace srexpert-system

# Create ServiceAccount
kubectl create serviceaccount srexpert -n srexpert-system

# Create ClusterRoleBinding
kubectl create clusterrolebinding srexpert-admin \
  --clusterrole=cluster-admin \
  --serviceaccount=srexpert-system:srexpert

# Get the token (Kubernetes 1.24+)
kubectl create token srexpert -n srexpert-system --duration=8760h

Cluster Settings

Each cluster can have specific settings:

  • Sync Interval - How often to refresh data
  • Timeout - API request timeout
  • Labels - Custom labels for organization
  • Notifications - Cluster-specific alerts

Multi-Cluster Operations

Compare Clusters

View resources across multiple clusters side by side.

Bulk Actions

Apply configurations to multiple clusters at once.

Troubleshooting

Cannot Connect

  • Verify the cluster API is accessible
  • Check firewall rules
  • Validate the kubeconfig credentials

Authentication Failed

  • Ensure certificates haven’t expired
  • Verify the user/ServiceAccount has permissions
  • Check if the token is still valid

Slow Performance

  • Check network latency to the cluster
  • Consider increasing timeout settings
  • Verify cluster resources aren’t exhausted
