Network Policies

Visualize and manage network traffic between pods in your cluster.

Overview

Network Policies features:

• Traffic visualization
• Policy management
• Topology view
• Traffic analysis

What are Network Policies?

Network Policies control traffic flow between pods:

• Default: All pods can communicate with each other
• With policies: Traffic is restricted based on rules

Note: Network Policies require a CNI that supports them (Calico, Cilium, Weave, etc.)

Viewing Policies

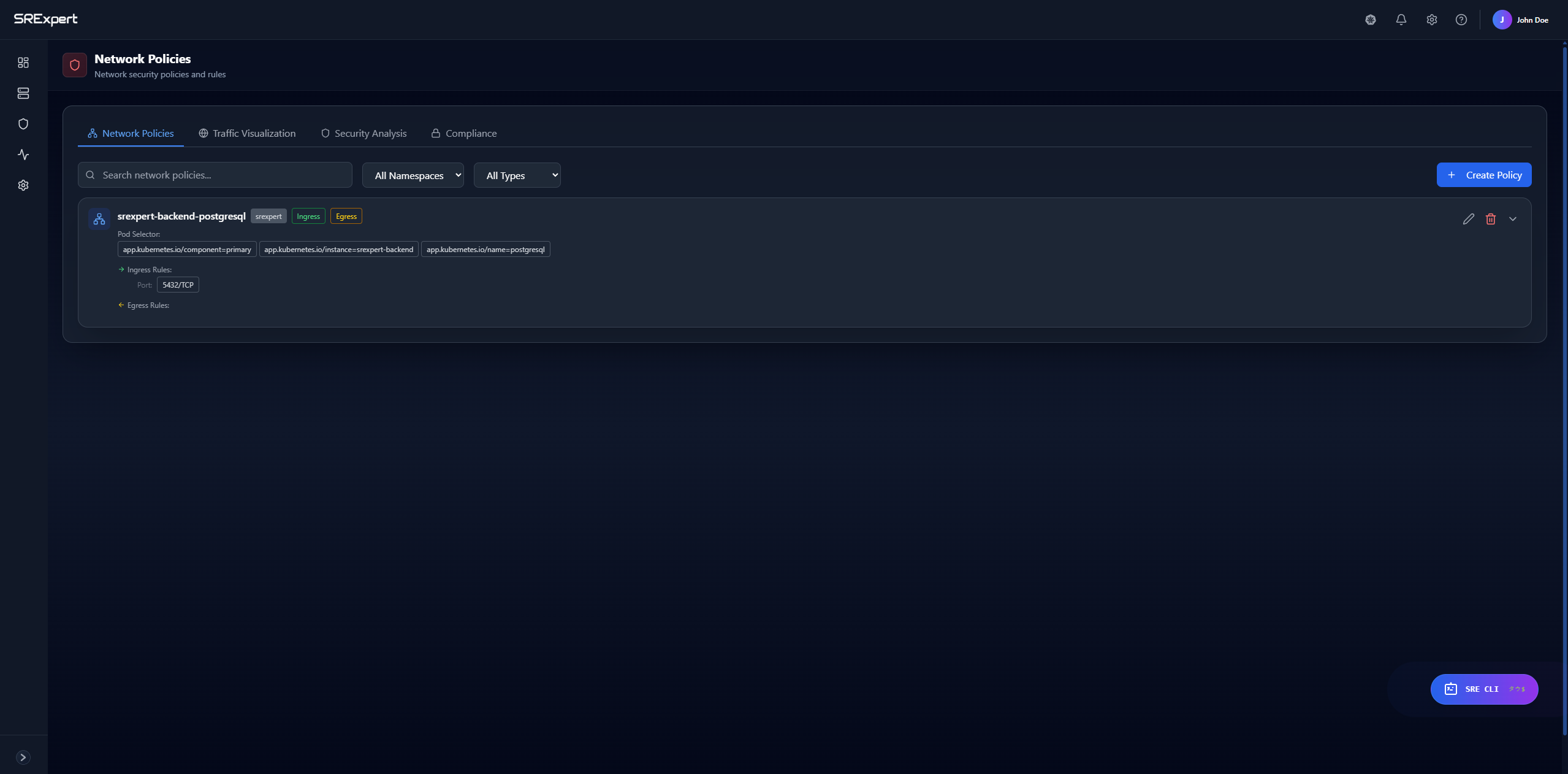

Policy List

Go to Security > Network Policies to see:

Policy Details

Click a policy to see:

• Full YAML specification
• Matched pods
• Traffic allowed/denied

Network Topology

Visualization

The topology view shows:

• Pods as nodes
• Connections as edges
• Allowed traffic (green)
• Blocked traffic (red)

Interactive Features

• Zoom in/out
• Click nodes for details
• Filter by namespace
• Search for pods

Creating Policies

Using the Wizard

1. Go to Security > Network Policies
2. Click New Policy
3. Follow the wizard:

Step 1: Basic Info

• Name
• Namespace
• Description

Step 2: Pod Selector

• Select pods to apply policy to
• Use labels for selection

Step 3: Ingress Rules

• Who can send traffic to these pods
• Which ports are allowed

Step 4: Egress Rules

• Where can these pods send traffic
• Which ports are allowed

4. Review and create

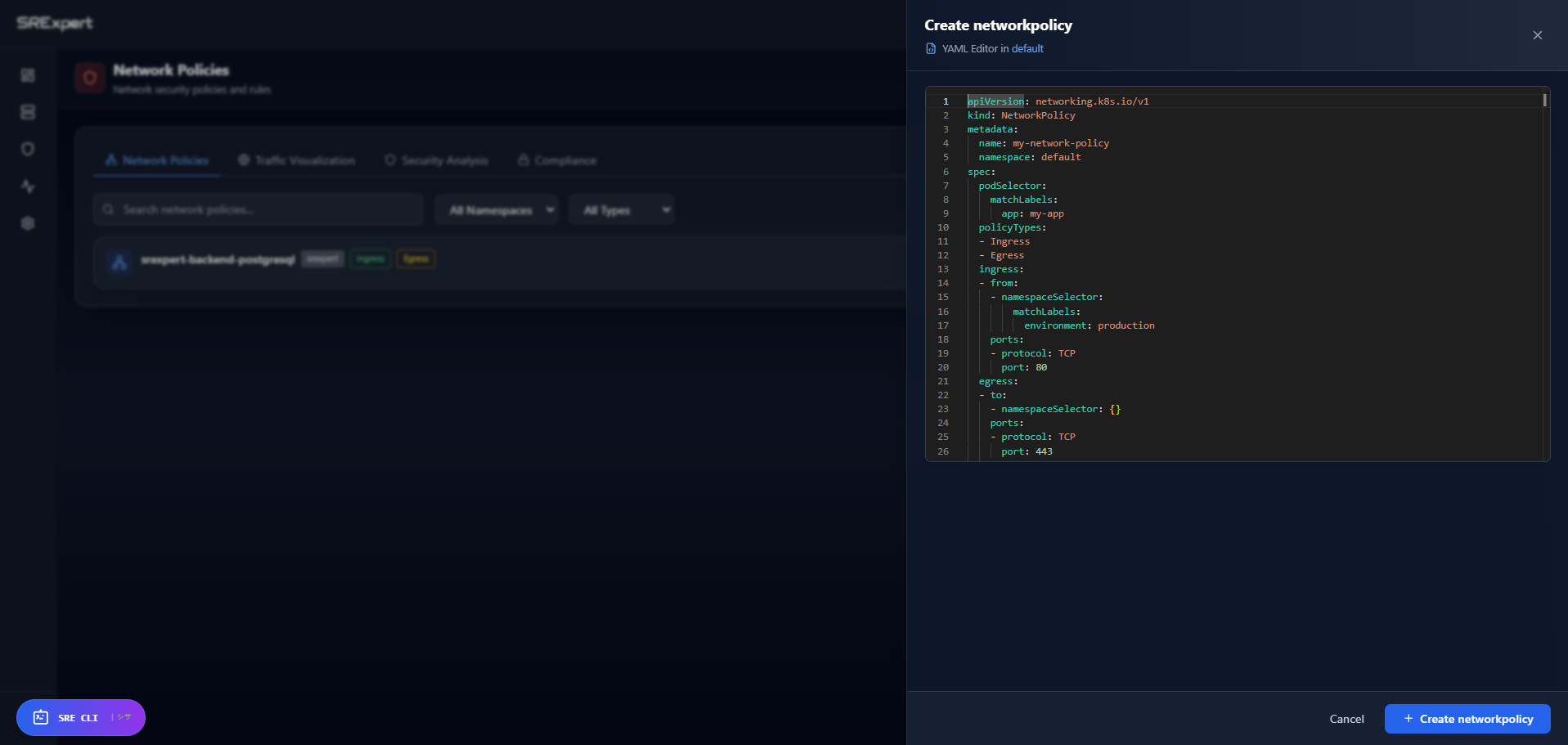

Using YAML

Create directly from YAML:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-frontend
  namespace: production
spec:
  podSelector:
    matchLabels:
      app: backend
  policyTypes:
  - Ingress
  ingress:
  - from:
    - podSelector:
        matchLabels:
          app: frontend
    ports:
    - protocol: TCP
      port: 8080

Common Patterns

Deny All Traffic

Block all traffic by default:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: deny-all
spec:
  podSelector: {}
  policyTypes:
  - Ingress
  - Egress

Allow Same Namespace

Allow traffic within namespace only:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-same-namespace
spec:
  podSelector: {}
  ingress:
  - from:
    - podSelector: {}
  policyTypes:
  - Ingress

Allow from Specific Namespace

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-from-monitoring
spec:
  podSelector: {}
  ingress:
  - from:
    - namespaceSelector:
        matchLabels:
          name: monitoring
  policyTypes:
  - Ingress

Allow DNS

Allow DNS resolution (usually needed):

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-dns
spec:
  podSelector: {}
  egress:
  - to:
    - namespaceSelector: {}
    ports:
    - protocol: UDP
      port: 53
  policyTypes:
  - Egress

Impact Analysis

Before applying a policy:

1. Click Analyze Impact
2. See affected pods
3. View connections that will be blocked
4. Identify potential issues

Traffic Monitoring

Real-time Traffic

View live traffic flow:

• Source and destination
• Bytes transferred
• Connection status

Historical Data

Analyze past traffic patterns:

• Traffic volume over time
• Top connections
• Blocked attempts

Policy Testing

Dry Run

Test policies before applying:

1. Create policy in draft mode
2. Run simulation
3. See predicted impact
4. Apply or modify

Audit Mode

Apply policy in audit mode:

• Policy is active
• Violations are logged
• Traffic is not blocked

Troubleshooting

Policy Not Working

• Verify CNI supports Network Policies
• Check pod labels match selectors
• Ensure policy is in correct namespace

Pods Can’t Communicate

• Check if a deny-all policy exists
• Verify ingress/egress rules
• Use the topology view to debug

DNS Not Working

• Add egress rule for DNS (port 53)
• Check kube-system namespace access

Best Practices

1. Start with deny-all - Add explicit allows
2. Allow DNS first - Most apps need it
3. Test in staging - Before production
4. Use namespaces - Logical separation
5. Document policies - Use descriptions

Next Steps

• Security View - Security overview
• Gatekeeper & Policies - OPA policies
• Troubleshooting - Debug issues
