Security View

The Security View provides comprehensive security analysis and compliance monitoring for your Kubernetes clusters.

Overview

Access Security features from the Security menu in the sidebar. The security dashboard shows:

• Overall compliance score
• Security posture rating
• Issue counts by severity
• Trends over time
• Top recommendations

Security Sections

Compliance Scanning

Supported Frameworks

SRExpert checks your clusters against industry standards:

Running a Compliance Check

1. Go to Security > Dashboard
2. Click Run Compliance Check
3. Select a framework (CIS, NSA, PCI-DSS)
4. Select target cluster
5. Click Run

The check executes against your Kubernetes API and returns real-time results.

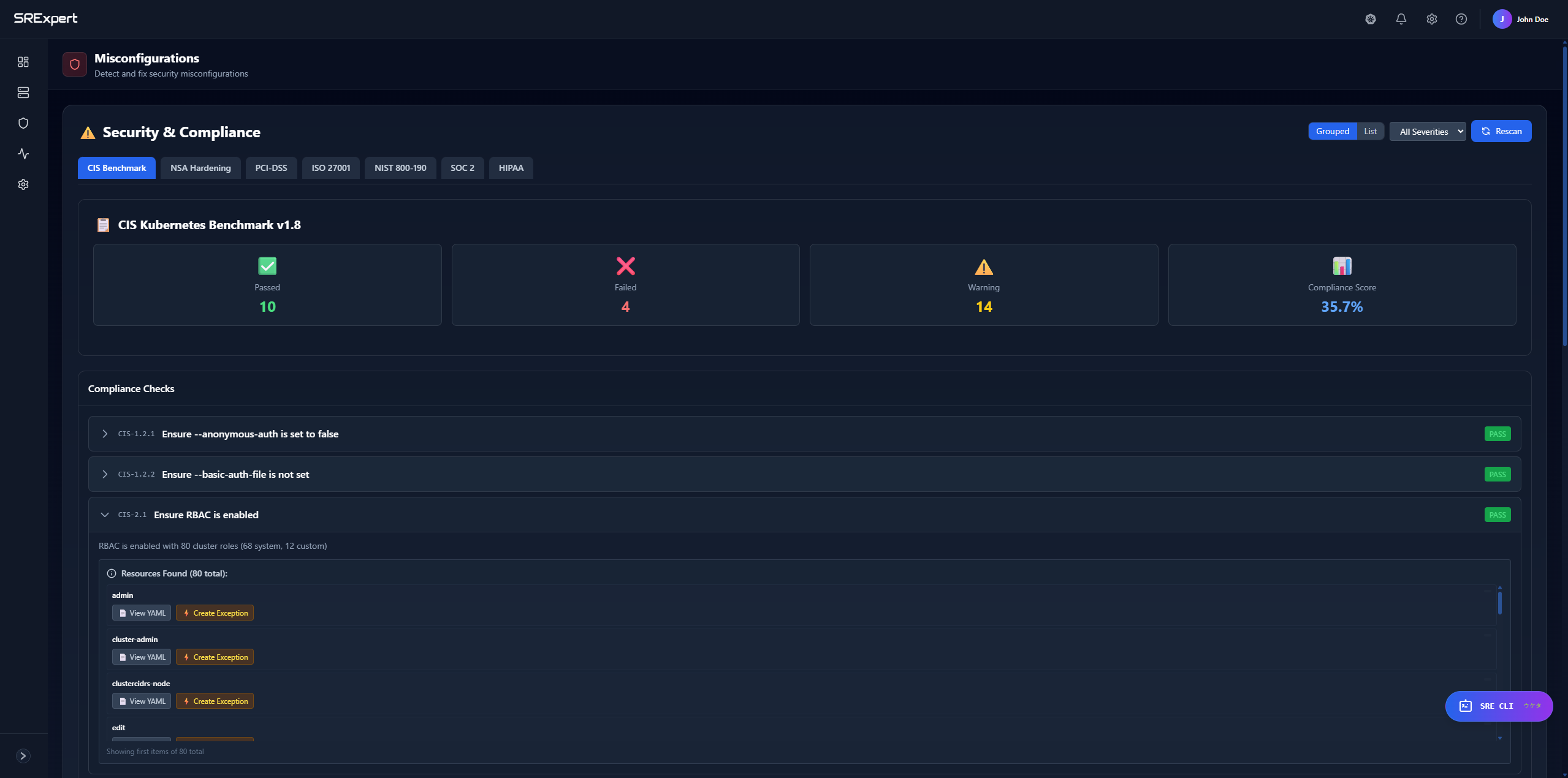

Compliance Results

Each check shows:

Compliance Score

The compliance score (0-100) is calculated based on:

• Number of passing checks
• Severity of failing checks
• Framework coverage

View your score:

1. Go to Security > Dashboard
2. See the compliance score card
3. Click for breakdown by framework

Compliance Reports

Export compliance reports:

1. Go to Security > Dashboard
2. Click Export Report
3. Select format (JSON, HTML, XML)
4. Download the report

Reports include:

• Executive summary
• Pass/fail details
• Remediation guidance
• Trend data

Vulnerability Scanning

Image Scanning

SRExpert integrates with Trivy for vulnerability scanning:

• Automatic scanning of deployed images
• CVE database from NIST NVD
• Severity classification
• Fix version recommendations

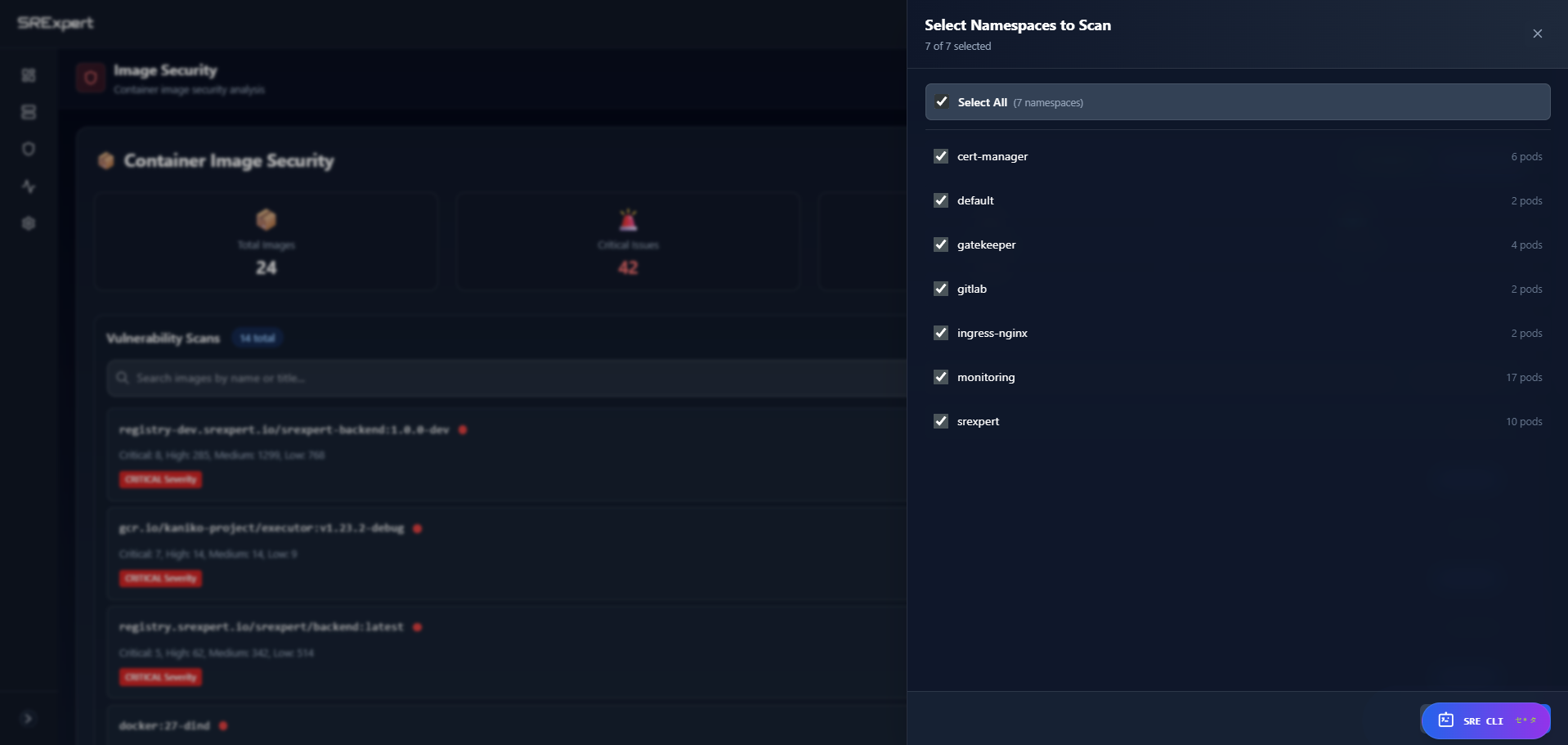

Scanning Options

1. Trivy Operator - Continuous scanning in-cluster
2. On-demand scanning - Scan specific images

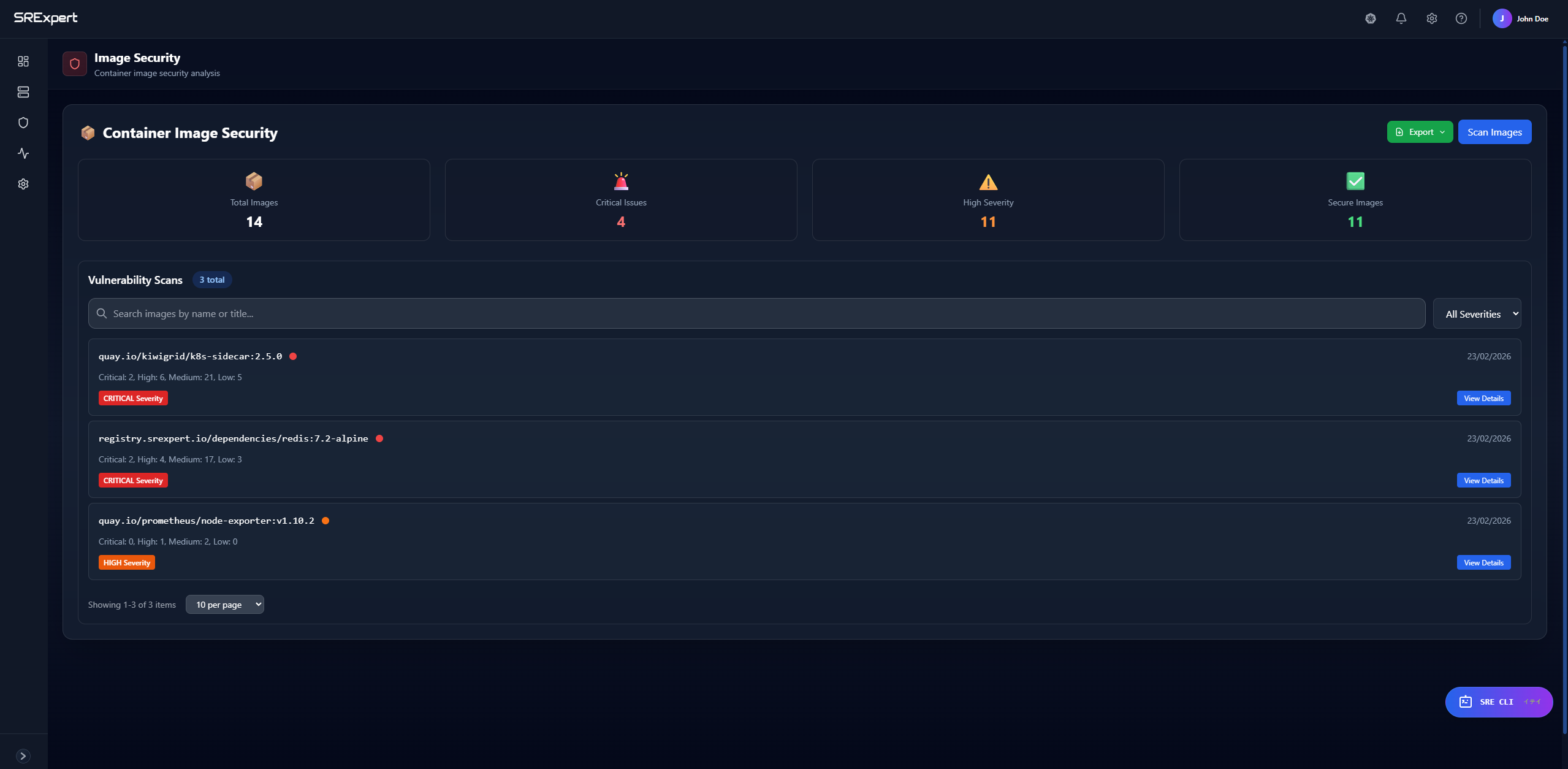

Viewing Vulnerabilities

1. Go to Security > Image Security
2. See images with vulnerability counts
3. Click an image for details

Each vulnerability shows:

• CVE ID and link
• Severity (Critical, High, Medium, Low)
• Affected package and version
• Fixed version (if available)
• Description

Filtering Vulnerabilities

Filter by:

• Severity level
• Namespace
• Image name
• Fix availability

RBAC Analysis

Overview

The RBAC analyzer examines your cluster’s role-based access control:

• ClusterRoles and Roles
• ClusterRoleBindings and RoleBindings
• ServiceAccounts
• Permission risks

RBAC Security Score

The RBAC security score (0-100) considers:

• Wildcard permissions (* resources or verbs)
• Overprivileged service accounts
• Risky role bindings
• Cluster-admin usage

Risk Types Detected

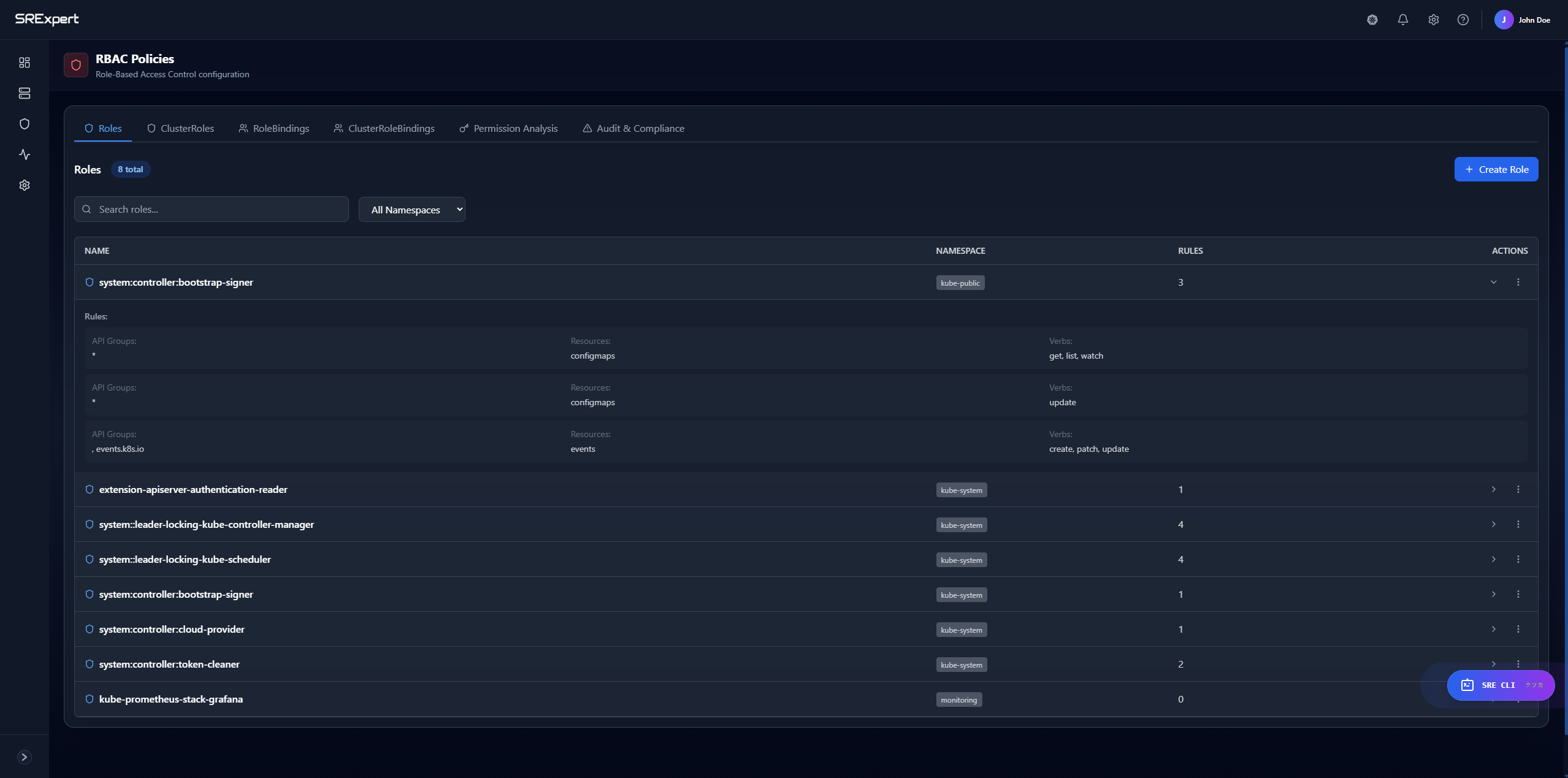

Viewing RBAC

1. Go to Security > RBAC
2. Tabs available:
   • Roles - Namespace-scoped roles
   • ClusterRoles - Cluster-wide roles
   • RoleBindings - Namespace bindings
   • ClusterRoleBindings - Cluster bindings
   • Analysis - Risk analysis

RBAC Analysis Output

{
  "security_score": 75,
  "summary": {
    "total_cluster_roles": 45,
    "total_roles": 23,
    "critical_risks": 2,
    "high_risks": 5,
    "medium_risks": 8
  },
  "risks": [
    {
      "severity": "CRITICAL",
      "type": "wildcard_permissions",
      "description": "ClusterRole 'admin' has wildcard resource access",
      "recommendation": "Restrict to specific resources"
    }
  ]
}

Secret Scanning

Running Secret Scans

1. Go to Security > Secrets Scan
2. View findings by namespace
3. Click a finding for details

Secret Findings

Each finding shows:

• Secret type detected
• Location (namespace, resource, field)
• Confidence level
• Remediation steps

Misconfiguration Detection

What’s Checked

SRExpert detects common misconfigurations:

• Privileged containers
• Missing resource limits
• Missing security context
• Exposed service ports
• Insecure pod configurations
• Missing network policies

Viewing Misconfigurations

1. Go to Security > Misconfigurations
2. Filter by severity or type
3. Click an issue for details and fix

Remediation

Each misconfiguration includes:

• Description of the risk
• Affected resources
• YAML example of the fix
• Best practice recommendation

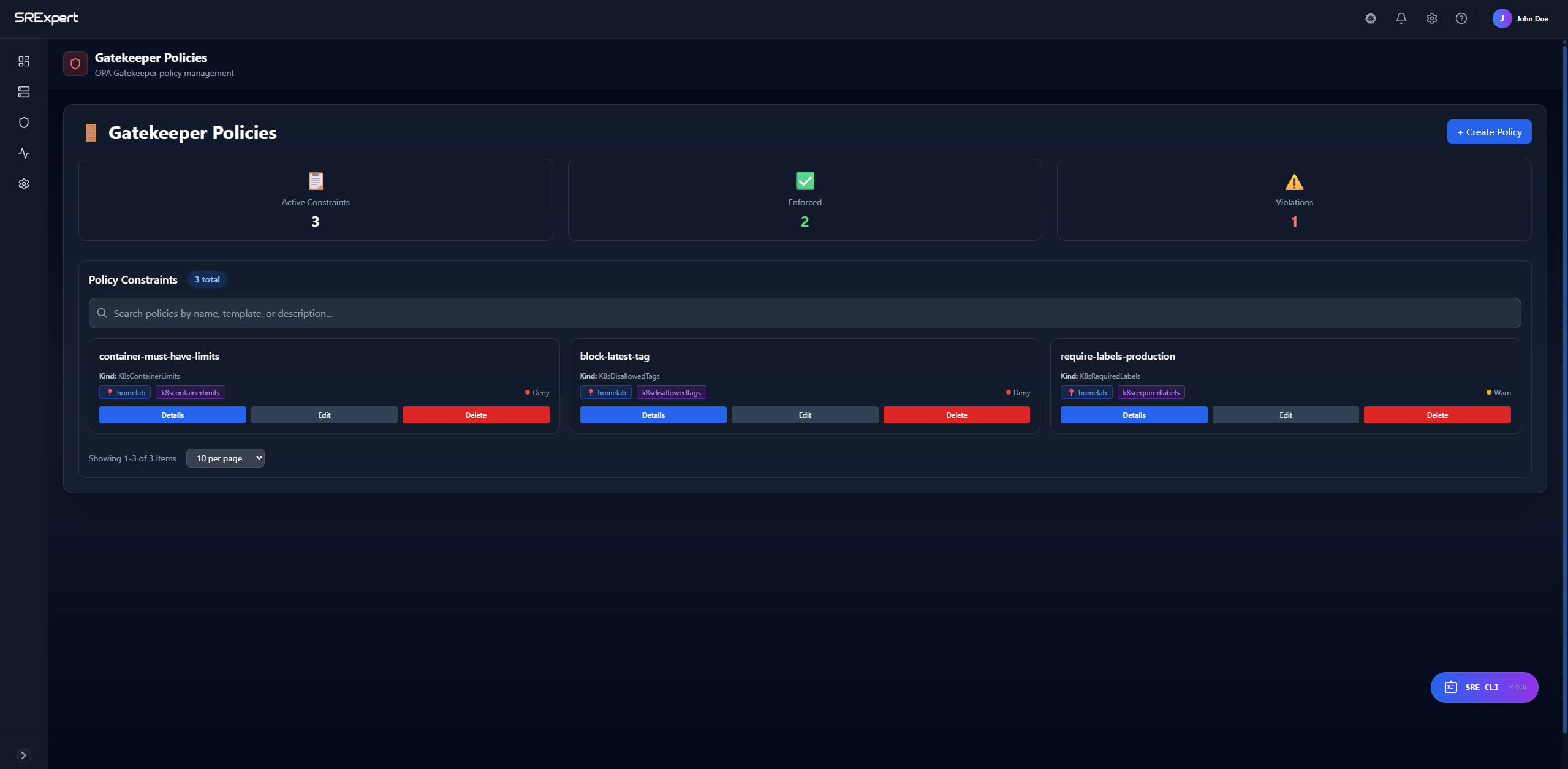

Gatekeeper Policies

Overview

OPA Gatekeeper enforces policies in your cluster. SRExpert helps you:

• View installed policies
• Monitor violations
• Manage enforcement modes
• Apply policy templates

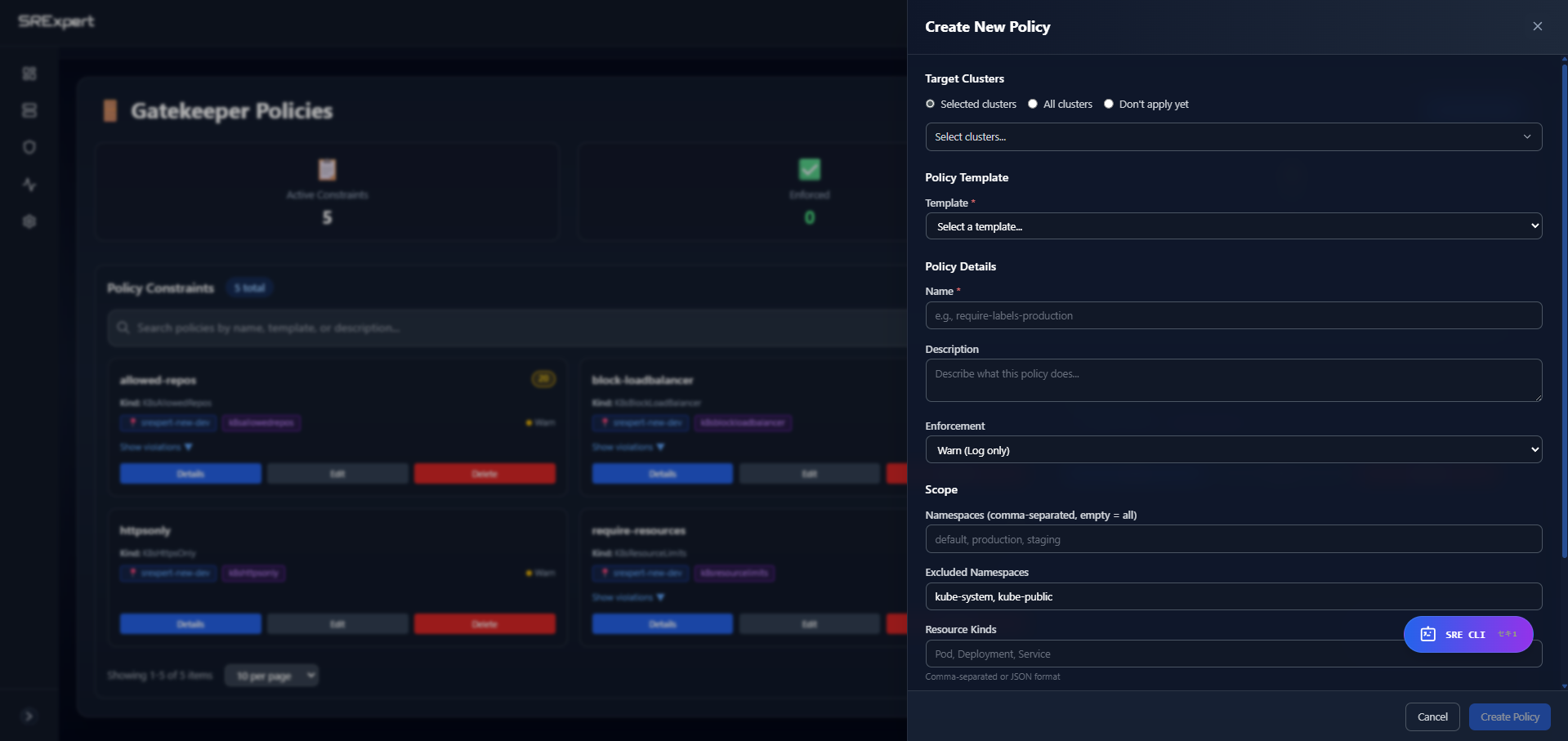

Policy Management

1. Go to Security > Gatekeeper
2. View active policies
3. Click a policy to see:
   • Template details
   • Constraints
   • Current violations
   • Enforcement mode

Enforcement Modes

Violations

View policy violations:

1. Go to Security > Gatekeeper
2. Click Violations tab
3. See resources failing policies

See Gatekeeper & Policies for detailed documentation.

Network Policy Analysis

Coverage Analysis

SRExpert analyzes your network policies:

• Namespaces without policies
• Pods without ingress restrictions
• Pods without egress restrictions
• Policy gaps

Viewing Network Policies

1. Go to Security > Network Policies
2. See coverage by namespace
3. Click a namespace for policy details

Recommendations

Get recommendations for:

• Deny-all base policies
• Specific allow rules
• Egress restrictions

See Network Policies for more details.

Service Account Security

Analysis

Review service account security:

• Accounts with mounted tokens
• Accounts with cluster-admin
• Unused service accounts
• Token age and rotation

Viewing Service Accounts

1. Go to Security > Service Accounts
2. Filter by namespace
3. See risk indicators
4. Click for details

Security Recommendations

AI-Powered Recommendations

SRExpert analyzes your cluster and provides prioritized recommendations:

1. Go to Security > Recommendations
2. See recommendations sorted by priority
3. Each recommendation shows:
   • Issue description
   • Affected resources
   • Remediation steps
   • Expected impact

Priority Factors

Recommendations are prioritized by:

• Severity of the issue
• Number of affected resources
• Ease of remediation
• Security impact

Security Trends

Viewing Trends

Track security posture over time:

1. Go to Security > Dashboard
2. See the trends chart
3. Toggle between 7 days and 30 days

Trends show:

• Compliance score changes
• Vulnerability counts
• Issue resolution rate

Best Practices

Regular Scanning

• Run compliance checks weekly
• Enable continuous vulnerability scanning
• Review RBAC quarterly

Prioritization

Focus on:

1. Critical vulnerabilities in production
2. Failing compliance checks
3. RBAC over-permissions
4. Exposed secrets

Remediation Workflow

1. Review new findings daily
2. Assign issues to team members
3. Fix and verify resolution
4. Track trends for improvement

Next Steps

• Gatekeeper & Policies - Enforce security policies
• Network Policies - Control network traffic
• Alerts & Notifications - Set up security alerts
• SRE CLI - Query security status with AI
