Configuration View

The Configuration View provides management of Kubernetes configuration resources including ConfigMaps, Secrets, and autoscaling settings.

Overview

Navigate to Workloads > Configuration to access:

ConfigMaps - Configuration data storage
Secrets - Sensitive data and credentials
HPA - Horizontal Pod Autoscalers
VPA - Vertical Pod Autoscalers

ConfigMaps

ConfigMaps store non-confidential configuration data as key-value pairs.

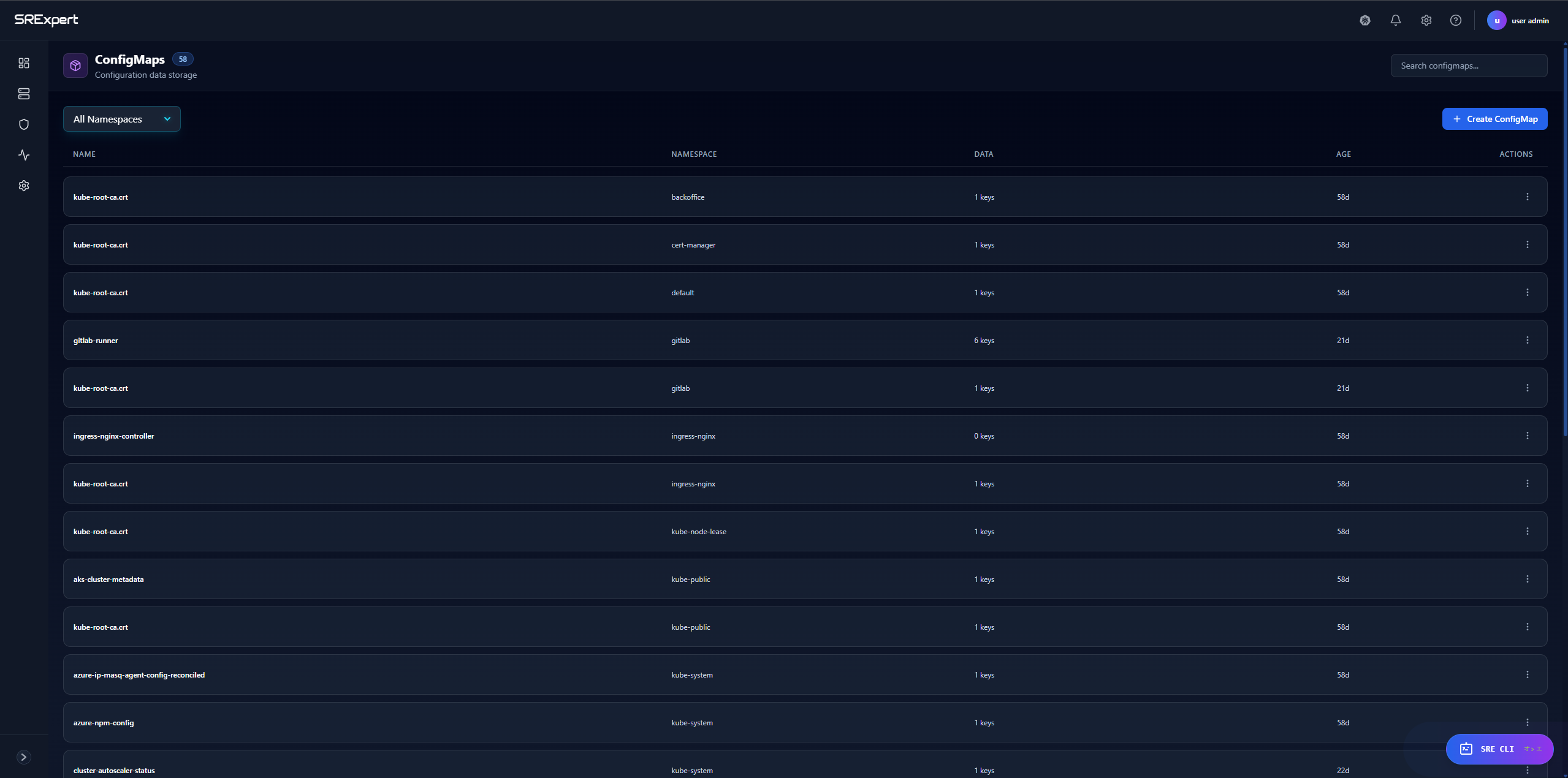

Viewing ConfigMaps

Navigate to Workloads > Configuration > ConfigMaps.

Column	Description
Name	ConfigMap name
Namespace	Kubernetes namespace
Data	Number of keys stored
Age	Time since creation
Actions	View, Edit, Delete

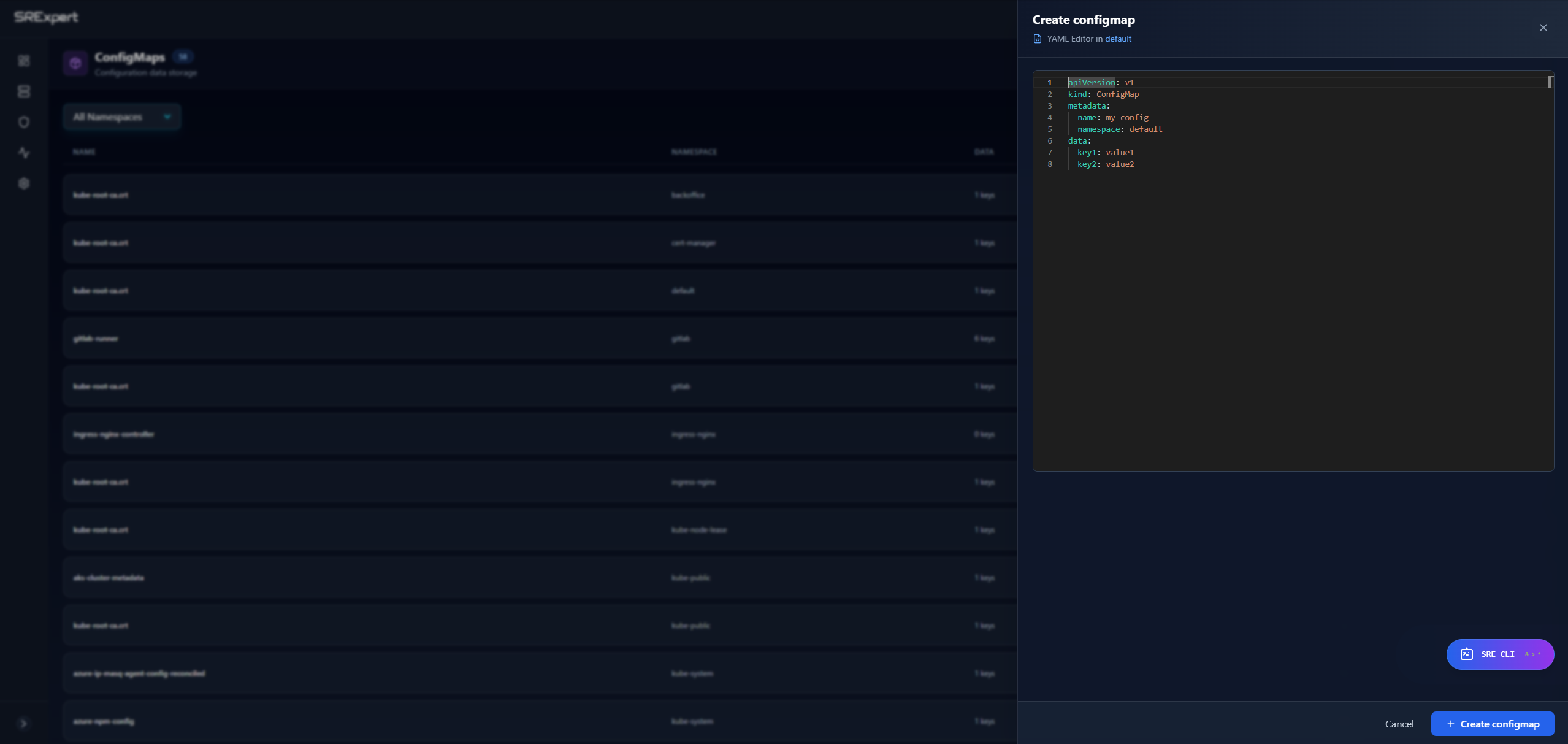

Creating a ConfigMap

Click + Create ConfigMap
Select the target namespace
Enter the ConfigMap name
Add key-value pairs or paste YAML
Click Create

ConfigMap Actions

Action	Description
View	See ConfigMap data and YAML
Edit	Modify key-value pairs
Delete	Remove the ConfigMap

Use Cases

Application configuration files
Environment variables
Command-line arguments
Configuration scripts

Secrets

Secrets store sensitive data such as passwords, tokens, and certificates.

Viewing Secrets

Navigate to Workloads > Configuration > Secrets.

Column	Description
Name	Secret name
Namespace	Kubernetes namespace
Type	Secret type (Opaque, docker-registry, TLS, etc.)
Data	Number of keys stored
Age	Time since creation
Actions	View, Edit, Delete

Secret Types

Type	Description
`Opaque`	Generic secret (default)
`kubernetes.io/dockerconfigjson`	Docker registry credentials
`kubernetes.io/tls`	TLS certificates
`kubernetes.io/service-account-token`	Service account tokens
`helm.sh/release.v1`	Helm release metadata

Creating a Secret

Click + Create Secret
Select the target namespace
Choose the secret type
Enter key-value pairs (values are base64 encoded automatically)
Click Create

Security Notes

Secret values are displayed masked by default
Click to reveal individual values
Avoid storing secrets in ConfigMaps
Consider using external secret management (Vault, AWS Secrets Manager)

HPA (Horizontal Pod Autoscaler)

HPA automatically scales the number of pod replicas based on observed metrics.

Viewing HPAs

Navigate to Workloads > Configuration > HPA.

Column	Description
Name	HPA name
Namespace	Kubernetes namespace
Reference	Target workload (Deployment, StatefulSet)
Min	Minimum replica count
Max	Maximum replica count
Replicas	Current replica count
Age	Time since creation

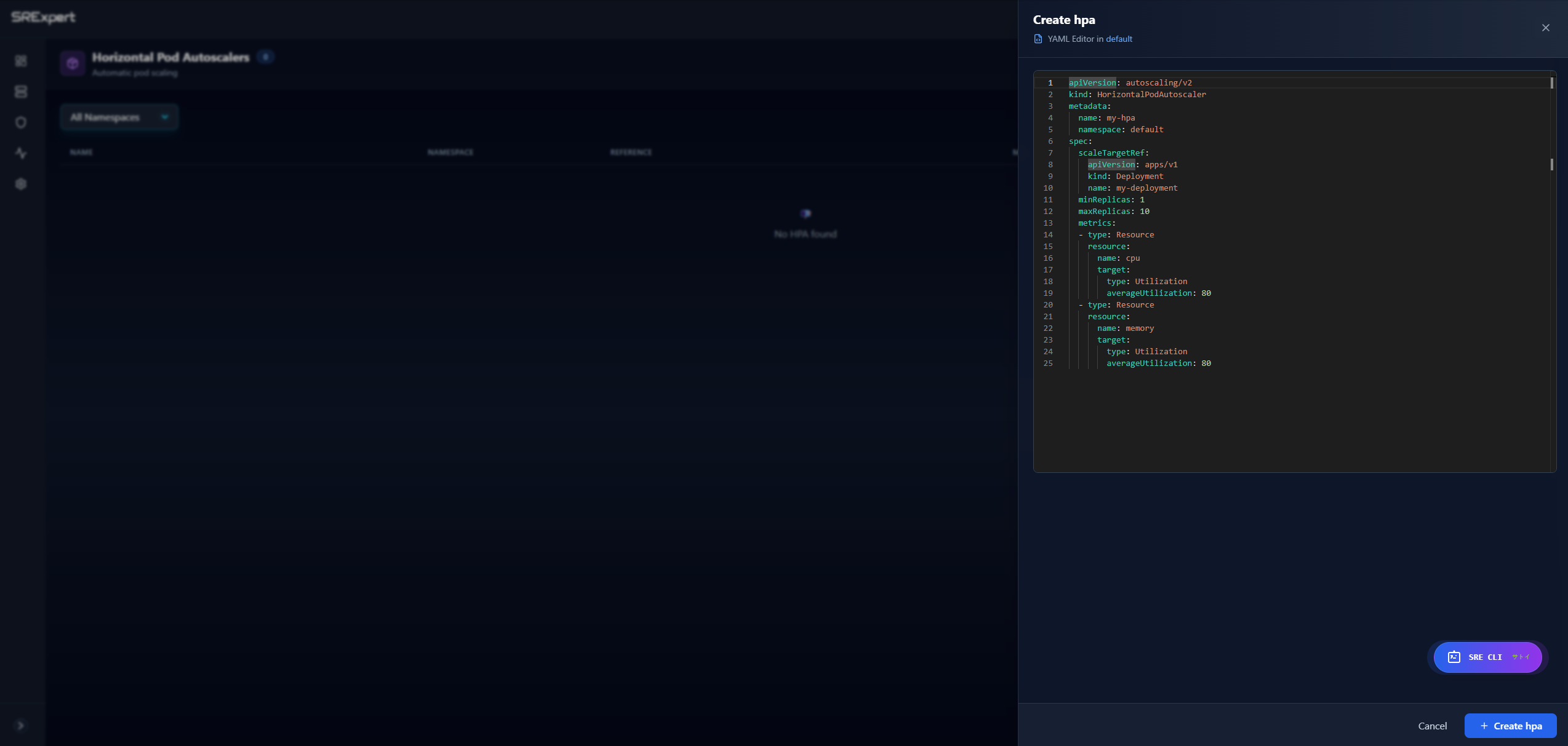

Creating an HPA

Click + Create HPA
Select the target namespace
Choose the target workload (Deployment or StatefulSet)
Set minimum and maximum replicas
Configure scaling metrics:
- CPU utilization percentage
- Memory utilization percentage
- Custom metrics
Click Create

HPA Configuration

Parameter	Description
minReplicas	Minimum number of replicas
maxReplicas	Maximum number of replicas
targetCPUUtilization	CPU threshold to trigger scaling
targetMemoryUtilization	Memory threshold to trigger scaling

Example HPA YAML

apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: my-app-hpa
  namespace: production
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: my-app
  minReplicas: 2
  maxReplicas: 10
  metrics:
  - type: Resource
    resource:
      name: cpu
      target:
        type: Utilization
        averageUtilization: 70

VPA (Vertical Pod Autoscaler)

VPA automatically adjusts CPU and memory requests/limits for containers.

Prerequisites

VPA requires the VPA Controller to be installed in your cluster. If not installed, you’ll see a message prompting installation.

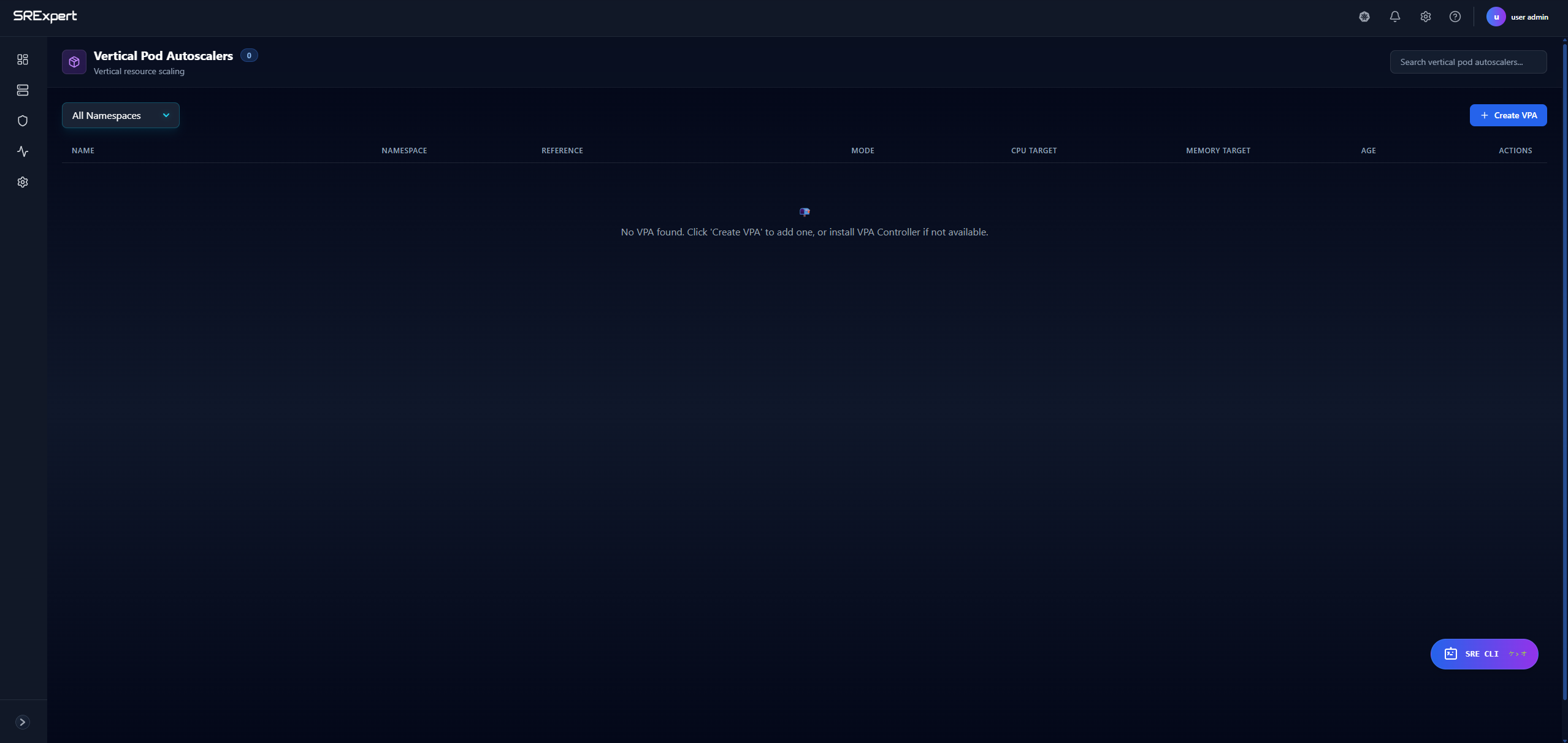

Viewing VPAs

Navigate to Workloads > Configuration > VPA.

Column	Description
Name	VPA name
Namespace	Kubernetes namespace
Reference	Target workload
Mode	Update mode (Off, Initial, Auto)
CPU Target	Recommended CPU
Memory Target	Recommended memory
Age	Time since creation

VPA Modes

Mode	Description
Off	Only provides recommendations, no changes applied
Initial	Applies recommendations only at pod creation
Auto	Automatically updates running pods (may cause restarts)

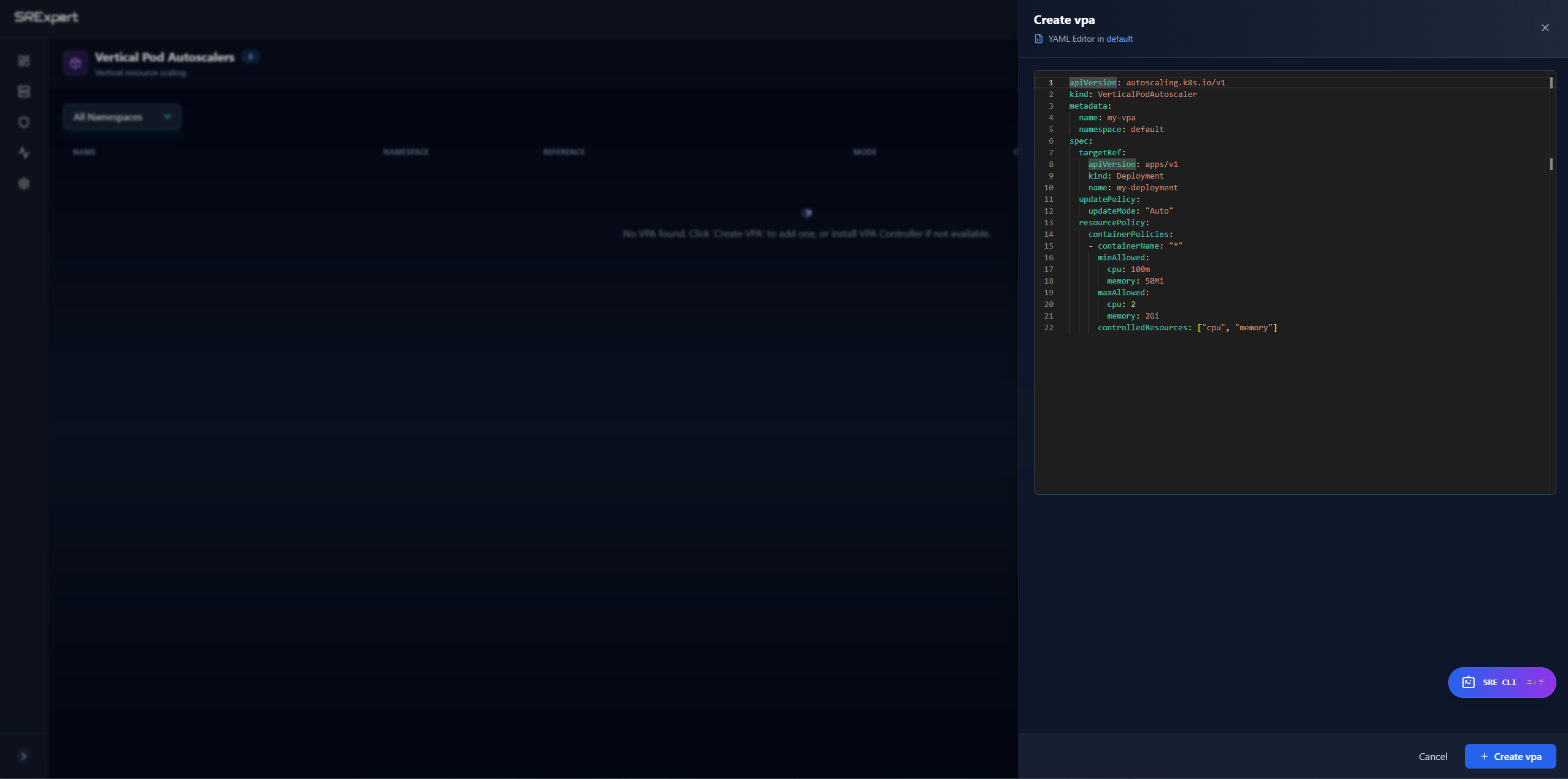

Creating a VPA

Click + Create VPA
Select the target namespace
Choose the target workload
Select the update mode
Configure resource policies (optional)
Click Create

Example VPA YAML

apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: my-app-vpa
  namespace: production
spec:
  targetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: my-app
  updatePolicy:
    updateMode: "Auto"
  resourcePolicy:
    containerPolicies:
    - containerName: "*"
      minAllowed:
        cpu: 100m
        memory: 128Mi
      maxAllowed:
        cpu: 2
        memory: 4Gi

Filtering and Search

All configuration views support:

Namespace filter - Select specific namespace or view all
Search - Filter by name
Pagination - Navigate through large lists

Best Practices

ConfigMaps

Use descriptive names that indicate the application and purpose
Keep ConfigMaps small and focused
Use separate ConfigMaps for different environments
Version ConfigMaps when configuration changes

Secrets

Rotate secrets regularly
Use RBAC to restrict secret access
Enable encryption at rest in your cluster
Audit secret access with logging

Autoscaling

Start with conservative min/max values
Monitor scaling events before production
Use HPA for stateless workloads
Use VPA to right-size resource requests
Avoid using HPA and VPA together on the same metric

Next Steps

Workloads View - Manage deployments and pods
Monitoring - Monitor resource usage
Security View - Security scanning and compliance
